All the Facts About the '56 Ford Booklet   Pages 62-67
All The Facts About The '56 Ford Booklet
Thermostat, Carburetors, 12-Volt Electrical System, "Power Punch" Battery
< Pages 1-13  Index, T-Bird Styling, Lifeguard Design, Models (All)
< Pages 14-23  Exteriors, "Crown of Chrome," "Sky View" Roof, T-Bird Soft - Hard - "Porthole" Tops
< Pages 24-35  Interiors, Instrument Panel, Gages, Upholstery
< Pages 36-45  Lifeguard & Other Accessories, SelectAire Conditioner, MagicAire Heater, Radios, Side-View Mirror, Electric Clock, Front Grille Guard, Wheel Covers, Rear Fender Shields, Power Steering, Power Brakes, Power Windows, Power Front Seat
< Pages 46-61  Conventional Drive - Overdrive - Fordomatic Transmissions, 223 (I-6) & 272 - 292 - 312 (Y-8) Cu. In. Engines
>  Pages 68-79  Crestmark All-Steel Body Construction, Transparent Blue-Green "Sky View" Roof, Convertible Top Mechanisms, Tail Gate & Lift Gate Mechanisms, Insulation, Fresh Air System, Glass Areas, Seats
> Pages 80-91  Chassis, Frames, Suspensions, Steering, Brakes, Pedals, Body Dimensions, 223 (I-6) & 272 - 292 - 312 (Y-8) Cu. In. Engine Specs (Detailed), Clutch, Conventional Drive - Overdrive - Fordomatic Transmissions (Detailed), Wheels & Tires, Rear Axles & Gear Ratios, Body Electrical Data
> Pages 92-99  Equipment (Detailed), Color & Upholstery Selections (Detailed)
Ford Division of Ford Motor Company, Printed in U.S.A. Form No. FD 7574
All The Facts Page 62   Positive-Action Thermostat   Double Twin-Jet Carburetor   Twin-Jet Carburetor
Go to top ▲

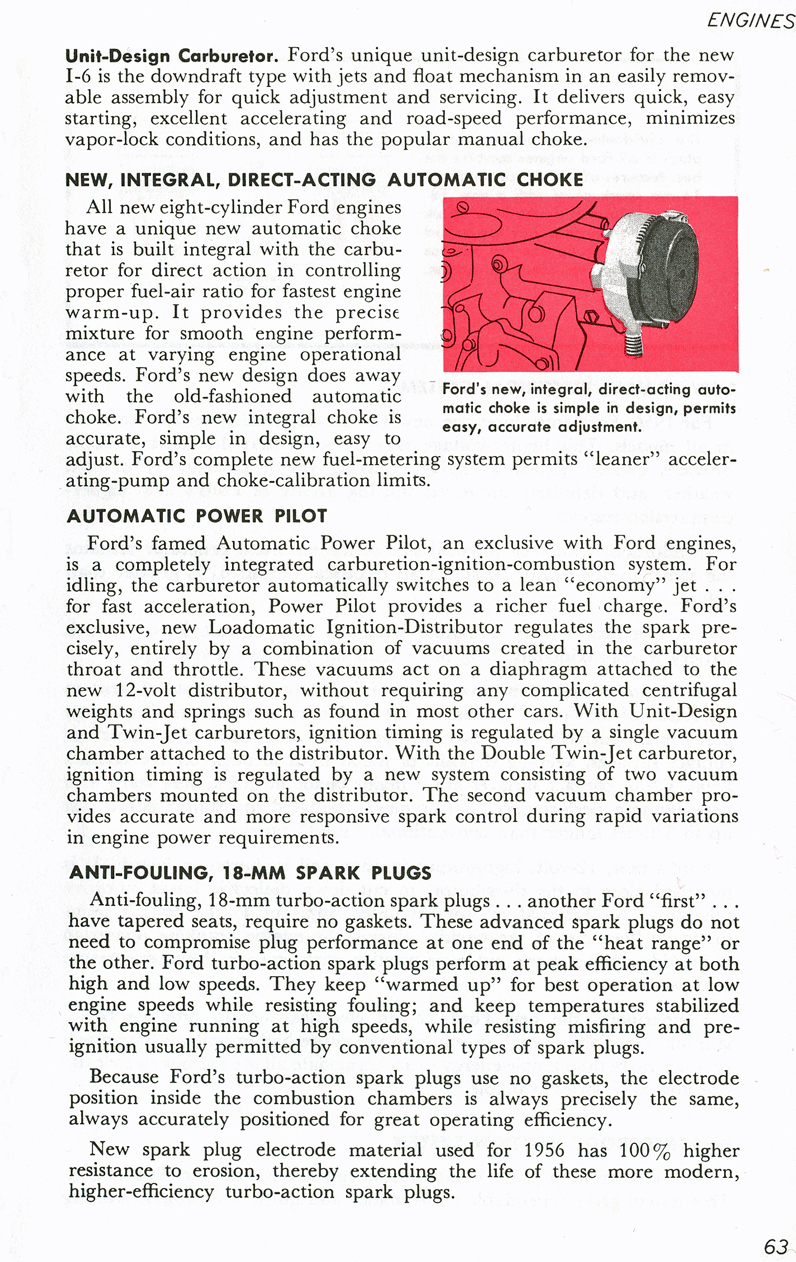

All The Facts Page 63   Unit-Design Carburetor   Automatic Choke   Automatic Power Pilot   Anti-Fouling 18-MM Spark Plugs
Go to top ▲

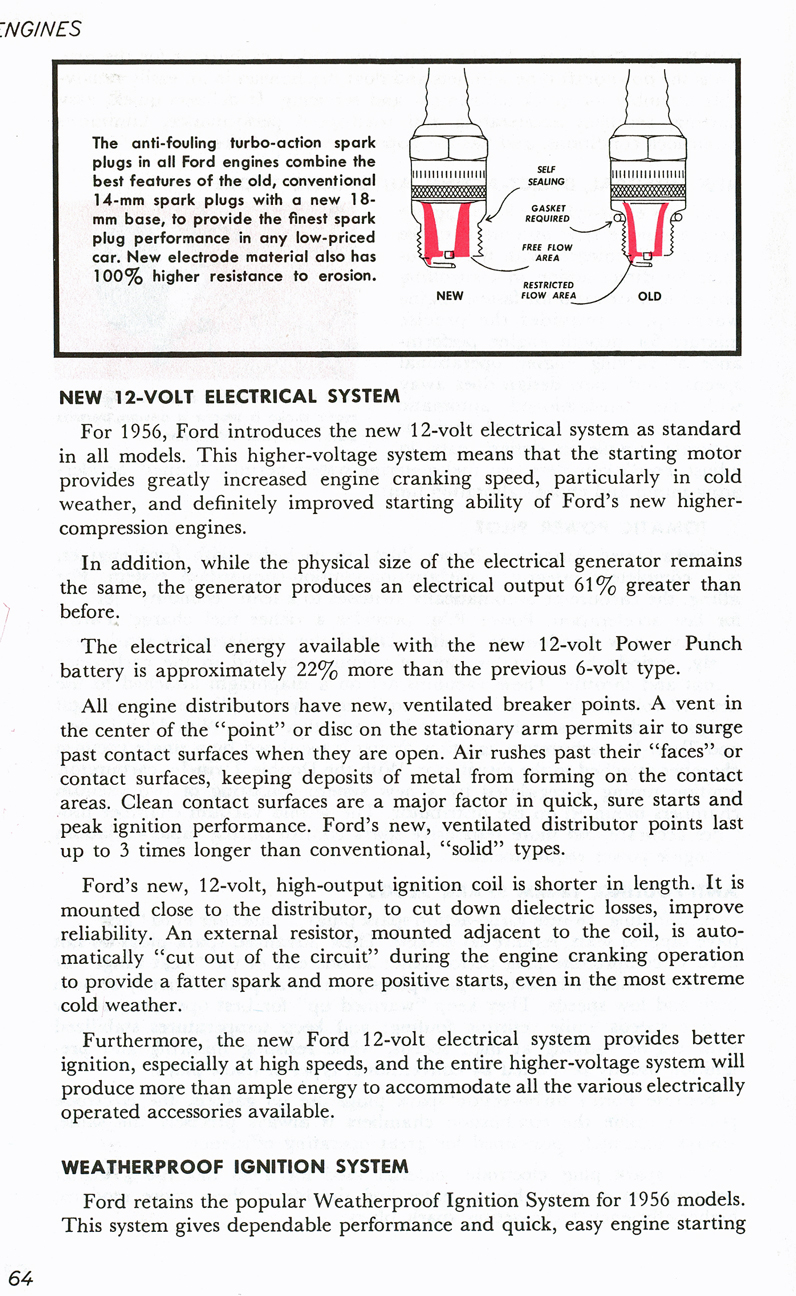

All The Facts Page 64   New 12-Volt Electrical System   Weatherproof Ignition System
Go to top ▲

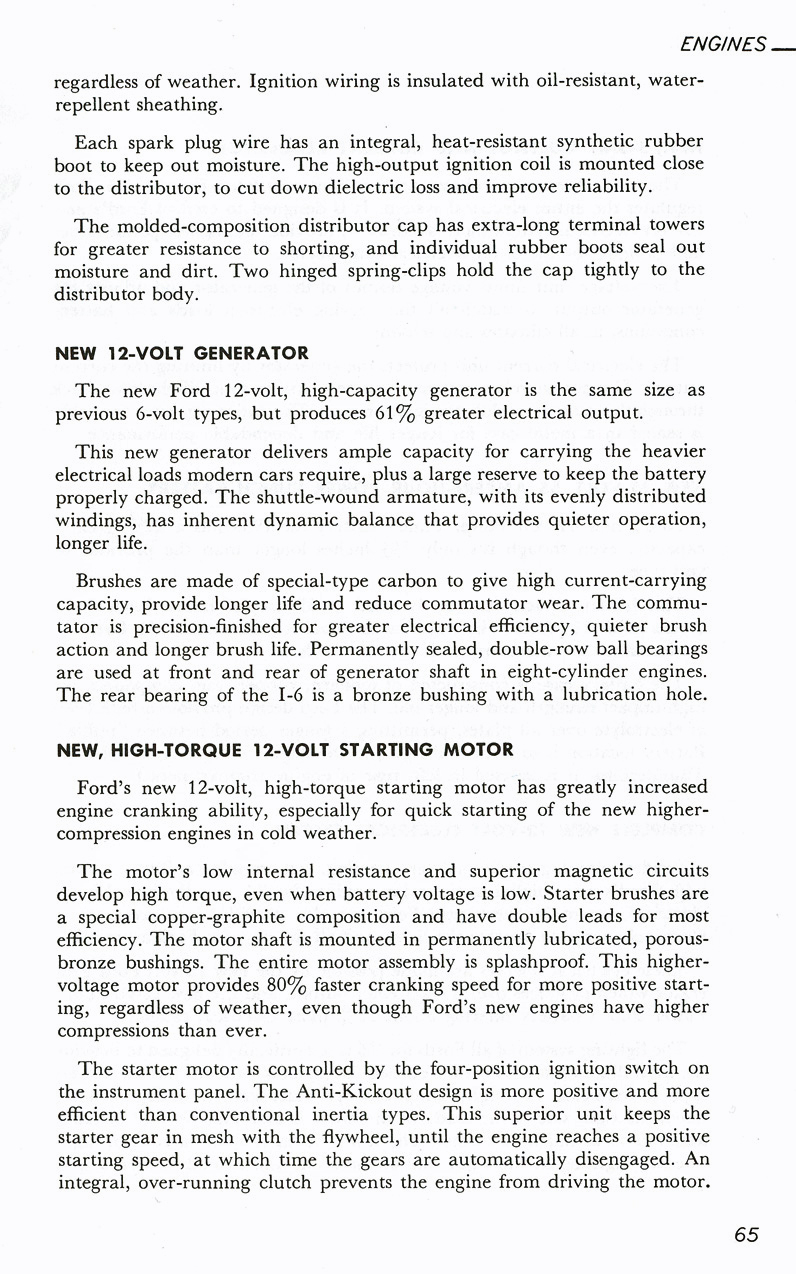

All The Facts Page 65   New 12-Volt Generator   New HIgh-Torque 12-Volt Starting Motor
Go to top ▲
All The Facts Page 66   New 3-Unit Voltage & Current Regulator   New 12-Volt 55 Ampere-Hour Power Punch Battery   Complete New 12-Volt Electrical System
Go to top ▲

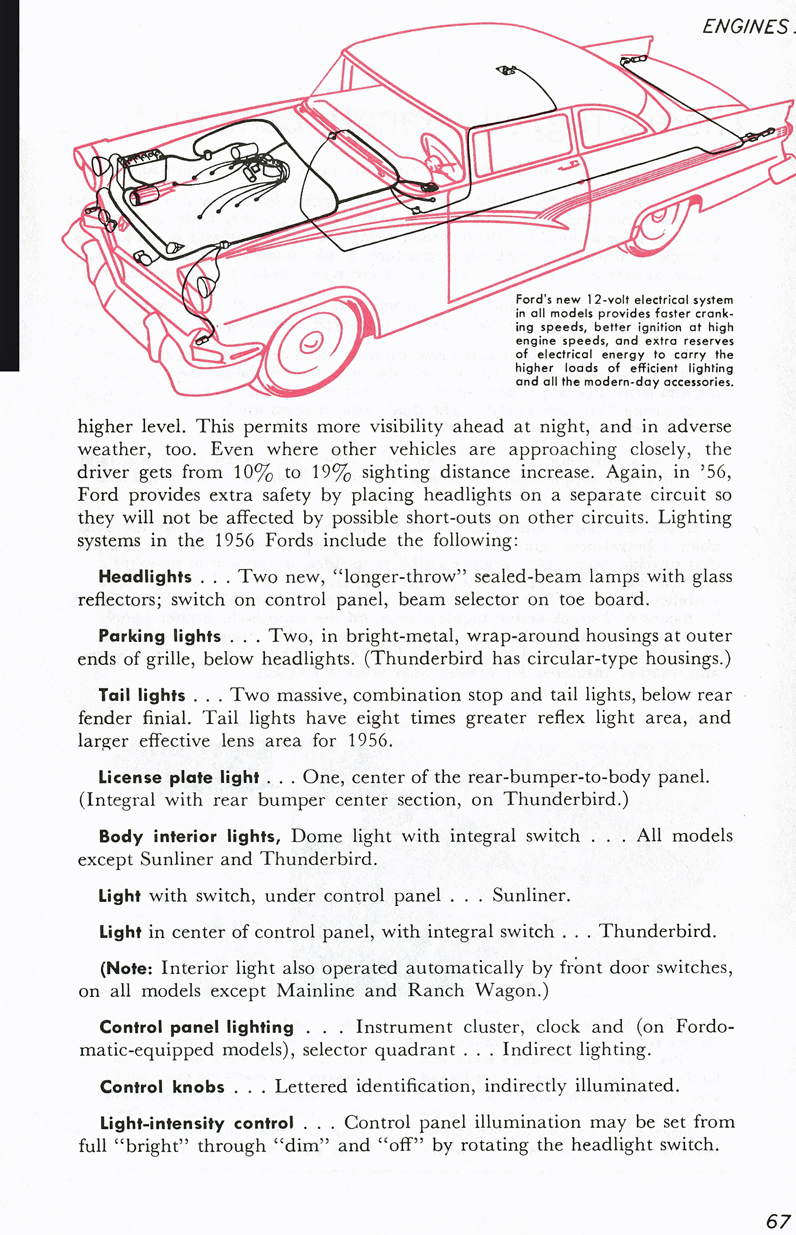

All The Facts Page 67   New 12-Volt Electrical System
Go to top ▲
