1956 Ford Fairlane Fordor Victoria Brochure
© 1955, Ford Motor Company, Dearborn, Michigan, Form FD-7621, Litho in U.S.A. 1/56

Click ▼ to enlarge . . .
The new Fairlane FORDOR VICTORIA

Go to top ▲

Body Type   Body Style   Production No   Engs   Trans   Rear Axle Ratio (to 1)   Tires   Prices

Fairlane Fordor Victoria   F   57A   32,111   Prices
4 dr. 6 pass. Top trim level. "Open air" hardtop.
Avail only w/
T-Bird V-8  292 CID  M  (opt T-Bird Special V-8  312 CID  P,  opt eng price not found)
Speed-Trigger Fordomatic Drive, Rear Axle 3.22 (opt none), & Tires 7.10 x 15"   $2,769 (Wash. D.C.)

Click ▼ to enlarge . . .
The new Fairlane FORDOR VICTORIA

Go to top ▲

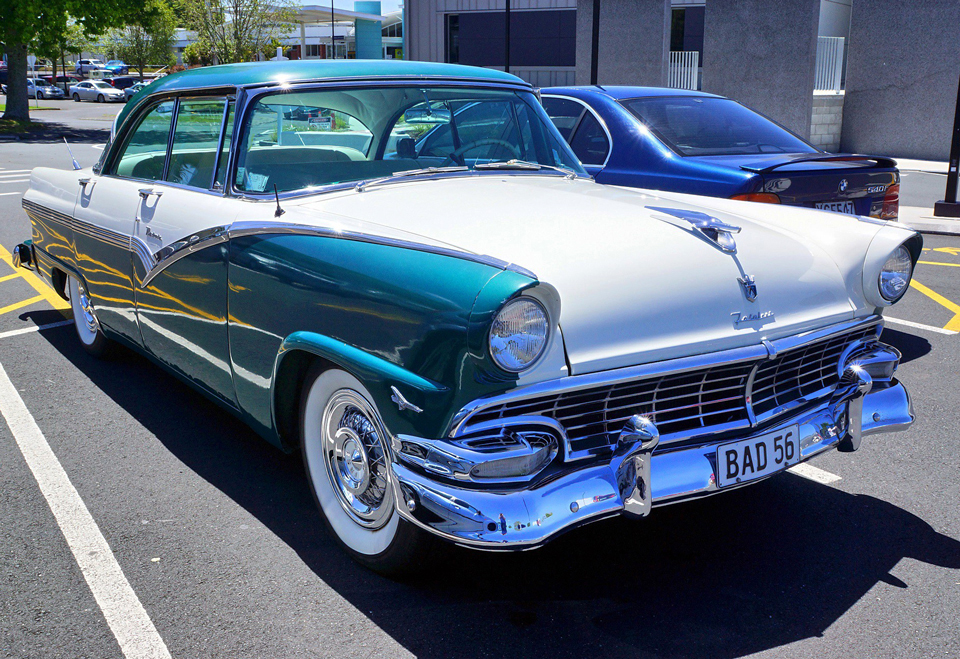

1956 Ford Fairlane Fordor Victoria
Engines


Thunderbird V-8  292 CID   M Code
Std on Fairlanes & Stn Wagons, opt on Mainlines & Customlines
8 cyl   90°-V   2 overhead-valve   Y-Block
3.75 in bore x 3.30 in stroke   5 main bearings
202 hp @ 4600 rpm   289 lb-ft-torque @ 2600 rpm   8.4 to 1 cr   w/ Fordomatic
Holley Double Twin-Jet carb (4-barrel) w/ auto choke   Dual exhaust bumper ported

Thunderbird Special V-8  312 CID   P Code
Opt on Fairlanes & Stn Wagons
8 cyl   90°-V   2 overhead-valve   Y-Block
3.8 in bore x 3.44 in stroke   5 main bearings
225 hp @ 4600 rpm   324 lb-ft torque @ 2600 rpm   9.0 to 1 cr   w/ Fordomatic
Holley Double Twin-Jet carb (4-barrel) w/ auto choke   Dual exhaust bumper ported

Click ▼ to enlarge . . .

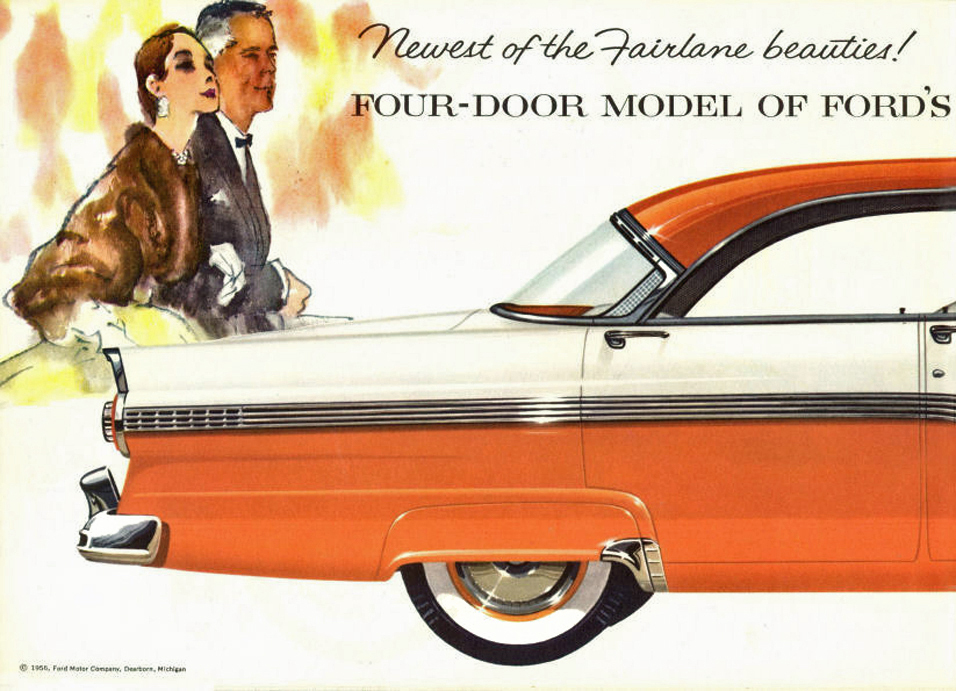

Newest of the Fairlane beauties!

Go to top ▲

Click ▼ to enlarge . . .
Newest of the Fairlane beauties!

Go to top ▲

Transmissions    Click "Shifting Gears" Owner's Manual Pages 12-14

Conventional Drive (3-speed Manual)
Std on all models (except Fairlane Fordor Victoria)
1st, 2nd (synchro), 3rd (synchro), & Reverse
All-helical gears, forged bronze synchronizers
Gear selector on steering column, "H" pattern

Overdrive (3-speed Manual w/ Auto Planetary 4th-speed Gear)
Opt on all models (except Fairlane Fordor Victoria)
1st, 2nd (synchro), 3rd (synchro), 4th (auto Overdrive, 30% lower eng rpm than 3rd), & Reverse
Gear selector on steering column, "H" pattern
Overdrive T-handle below control panel
Engage OD in 3rd at any speed push in T-handle & let-up throttle,
      auto cut-in at any speed above 27-28 mph, auto cut-out (return to 3rd) below 21-22 mph
Cut-out OD when driving in OD full-throttle "kick-down" to 3rd (passing, hill climbing),
      (throttle let-up returns OD)
"Lock out" OD when driving in OD full-throttle "kick-down" to 3rd & pull out T-handle,
      or when not driving in OD - or stopped - pull out T-handle

Speed-Trigger Fordomatic Drive (3-speed Automatic)
Opt on all models, std on Fairlane Fordor Victoria
Low (1st), Intermediate (2nd, Passing), High (3rd), & Reverse
Automatic planetary gear train & single-stage 3-element hydralic-mechanical Torque Converter (oil cushion - no mechanical linkage between engine & drive train, no vacuum or electrical connections)
Safety-sequence gear selector on steering column, Illuminated indicator dial
P  Park
R  Reverse gear
N  Neutral
      • start engine
DR  Drive
      • part-throttle 2nd gear take-off (typical driving), auto upshift to 3rd
      • full-throttle 1st gear take-off (Speed-Trigger), auto upshifts to 2nd (30 mph) & 3rd (65 mph)
      • increased or full-throttle kick-down to 2nd (Passing gear) below 65-68 mph
      • increased or full-throttle kick-down to 1st below 18 mph
LO  Low
      • 1st gear take-off & hold up to 35 mph (auto upshifts to 2nd & 3rd if/when DR selected)
      • downshift to 2nd below 60 & above 17-23 mph (engine braking)
      • downshift to 1st below 17-23 mph (engine braking)

Click ▼ to enlarge . . .

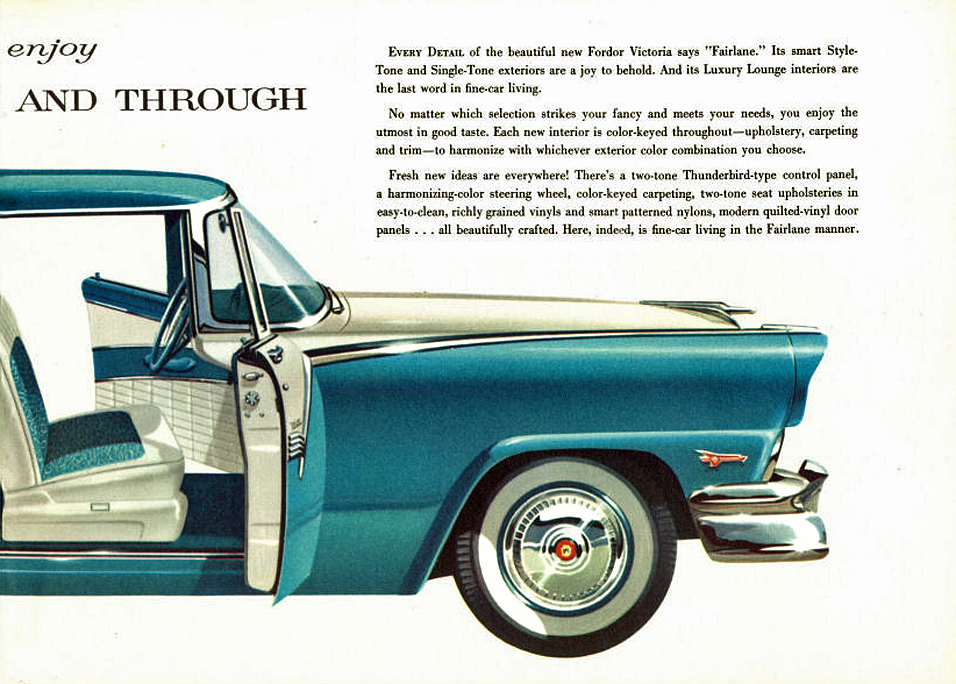

THE FAIRLANE TOUCH THROUGH AND THROUGH

Go to top ▲

Click ▼ to enlarge . . .
THE FAIRLANE TOUCH THROUGH AND THROUGH

Go to top ▲
1956 Ford Fairlane Fordor Victoria
Rear Axle Ratio  (to 1)


Std Thunderbird V-8 292 M & Opt Thunderbird Special V-8 312 P
Std Rear Axle 3.22 (opt none) & Speed-Trigger Fordomatic Drive

Click ▼ to enlarge . . .

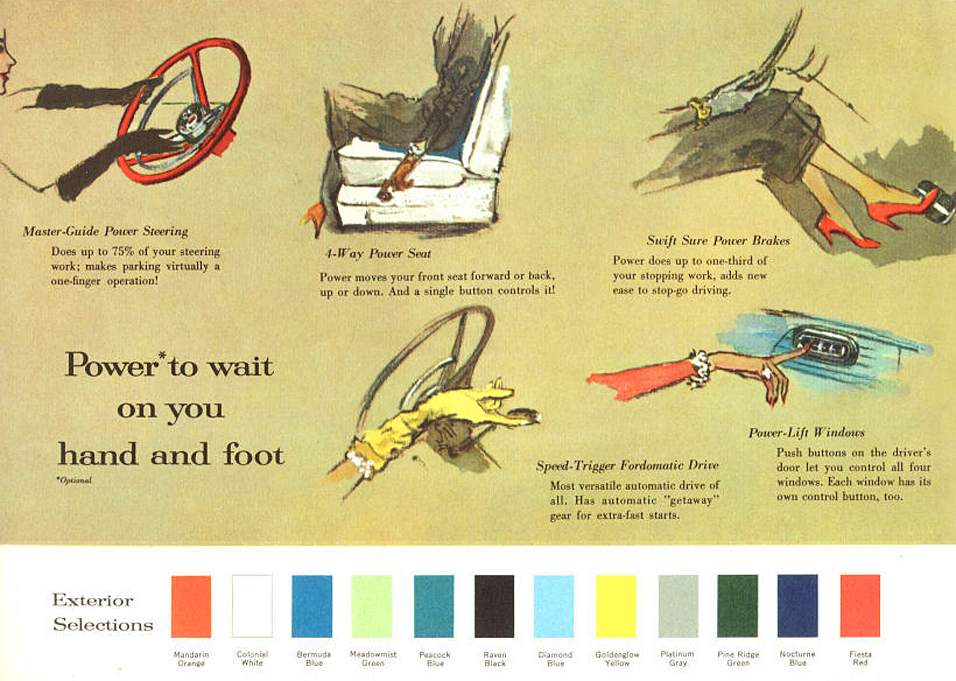

Power Assists

Go to top ▲

Click ▼ to enlarge . . .

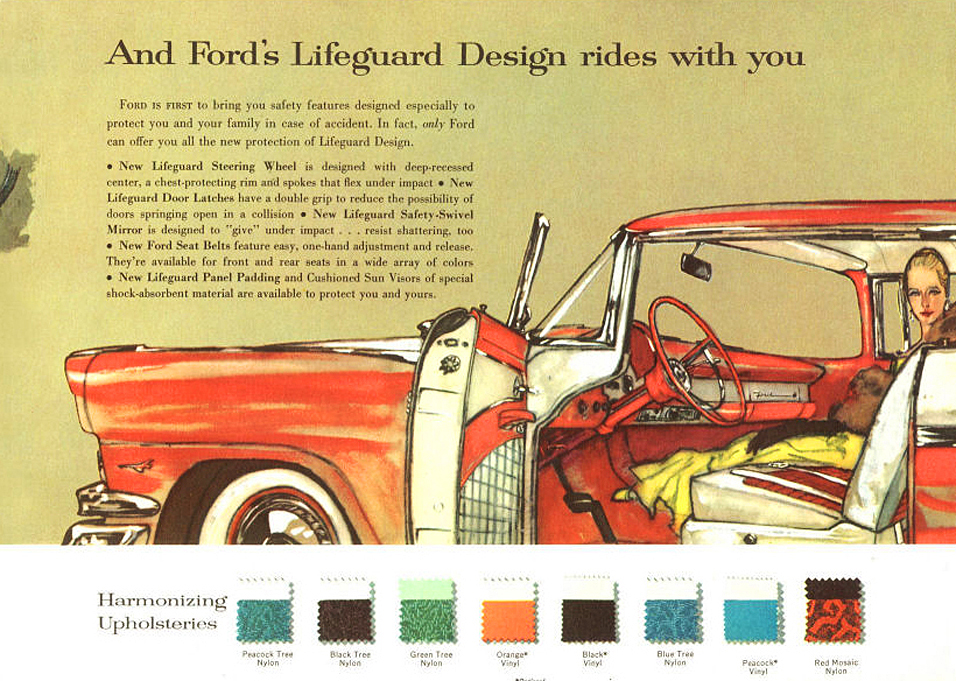

Lifeguard Design

Go to top ▲



Fairlane bodyside sweep wide bright-metal molding w/ black painted insets . . .
