All The Facts About The '56 Ford Booklet
Ford Division of Ford Motor Company, Printed in U.S.A. Form No. FD 7574

Pages 80-91   Chassis, Frames, Suspensions, Steering, Brakes, Pedals, Body Dimensions, (I-6) 223 & (V-8) 272 - 292 - 312 Cu. In. Engine Specs (Detailed), Clutch, Conventional Drive - Overdrive - Fordomatic Transmissions (Detailed), Wheels & Tires, Rear Axles & Gear Ratios, Body Electrical Data

All The Facts About The '56 Ford Booklet  cover < Pages 1-13  Index, T-Bird Styling, Lifeguard Design, Models (All)
< Pages 14-23  Exteriors, "Crown of Chrome," "Sky-view" Roof, T-Bird Soft - Hard - "Porthole" Tops
< Pages 24-35  Interiors, Instrument Panel, Gages, Upholstery
< Pages 36-45  Lifeguard & Other Accessories, SelectAire Conditioner, MagicAire Heater, Radios, Side-View Mirror, Electric Clock, Front Grille Guard, Wheel Covers, Rear Fender Shields, Power Steering, Power Brakes, Power Windows, Power Front Seat
< Pages 46-61  Conventional Drive - Overdrive - Fordomatic Transmissions, (I-6) 223 & 272 - (V-8) 292 - 312 Cu. In. Engines
< Pages 62-67  Thermostat, Carburetors, 12-Volt Electrical System, "Power Punch" Battery
< Pages 68-79  Crestmark All-Steel Body Construction, Transparent Blue-Green "Sky View" Roof, Convertible Top Mechanisms, Tail Gate & Lift Gate Mechanisms, Insulation, Fresh Air System, Glass Areas, Seats

> Pages 92-99  Equipment (Detailed), Color & Upholstery Selections (Detailed)
Go to top ▲

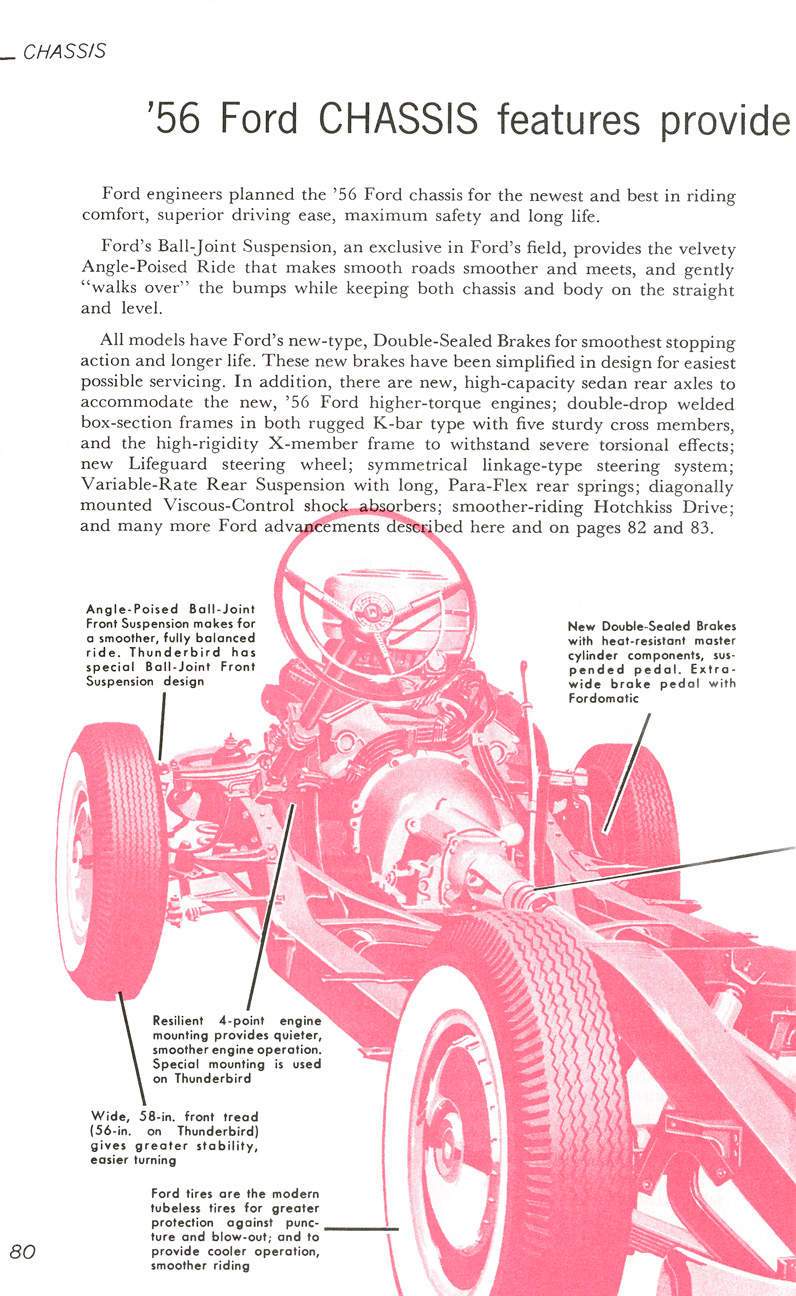

All The Facts Page 80   Suspension  Brakes   Frames   Tires
Go to top ▲

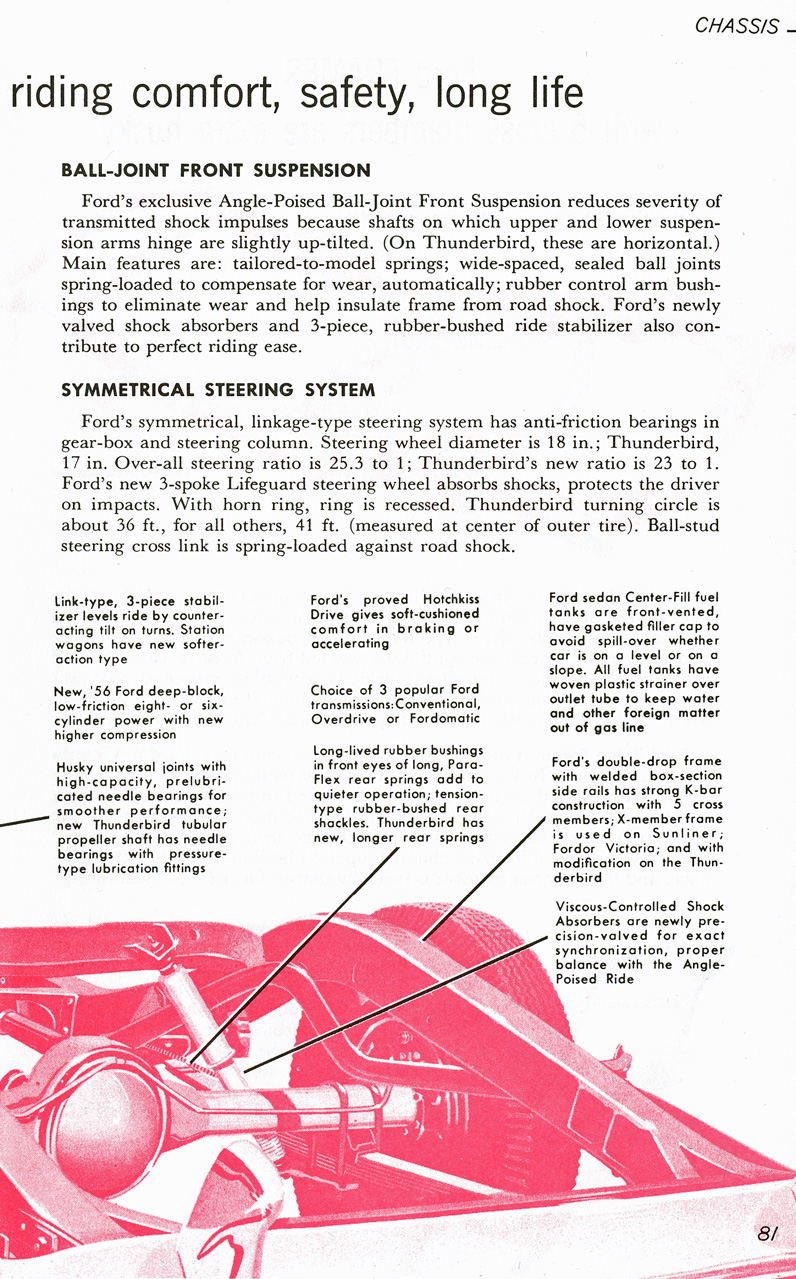

All The Facts Page 81   Ball-Joint Front Suspension   Symmetrical Steering System
Go to top ▲

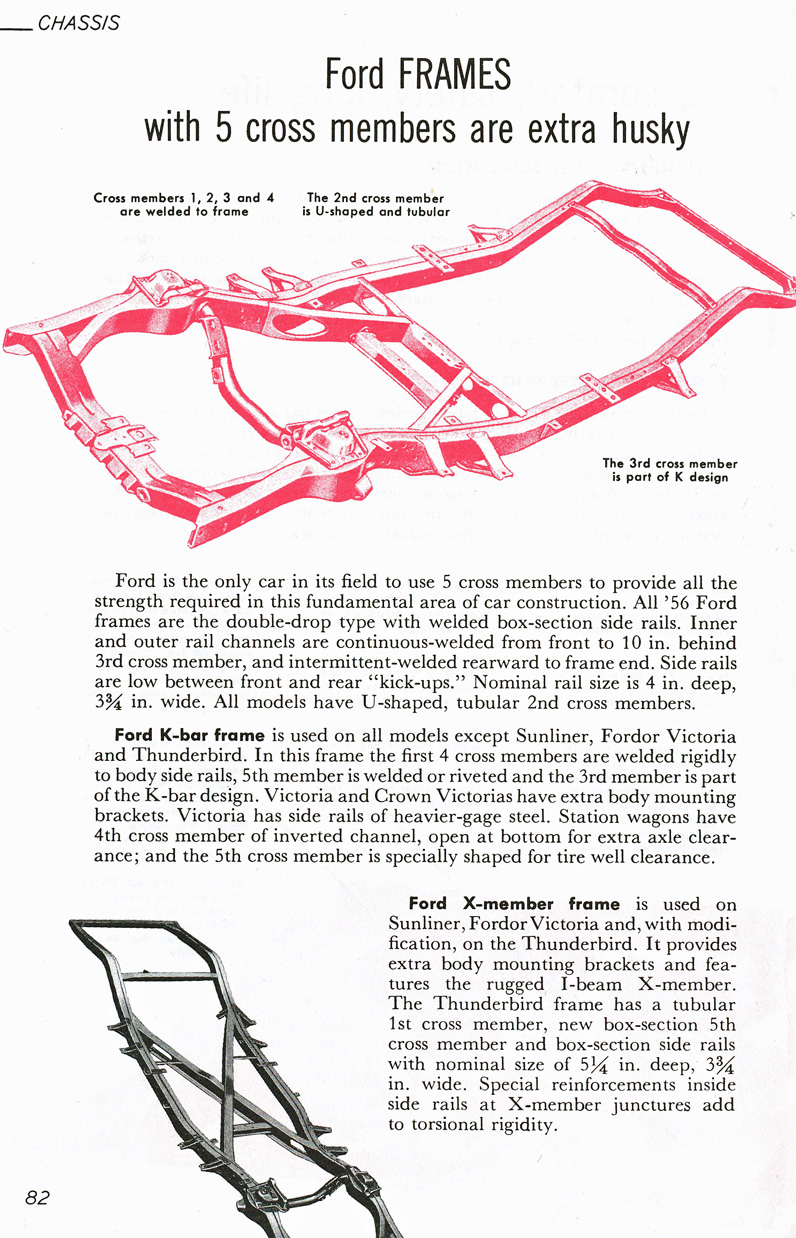

All The Facts Page 82   Ford K-Bar Frame   Ford X-Member Frame
Go to top ▲

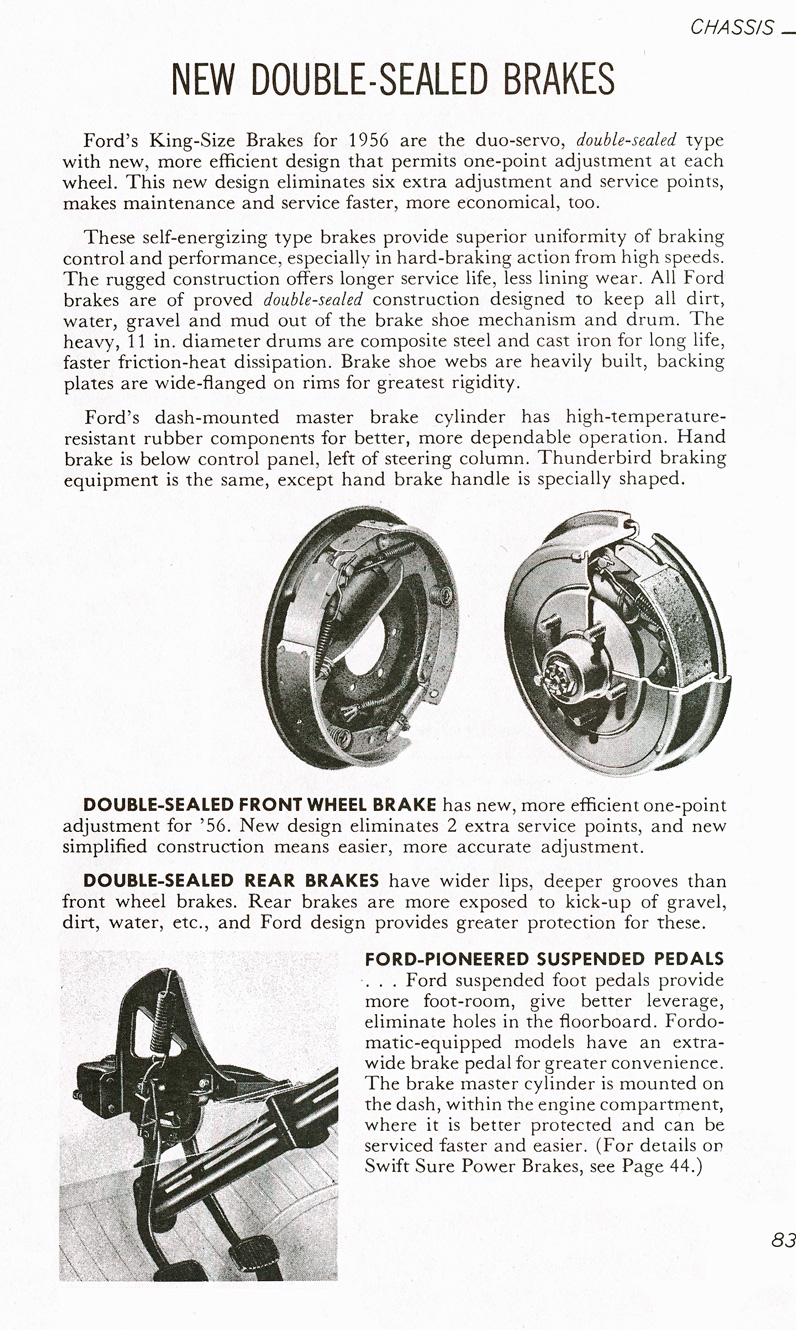

All The Facts Page 83   Double-Sealed Brakes   Ford-Pioneered Suspended Pedals
Go to top ▲

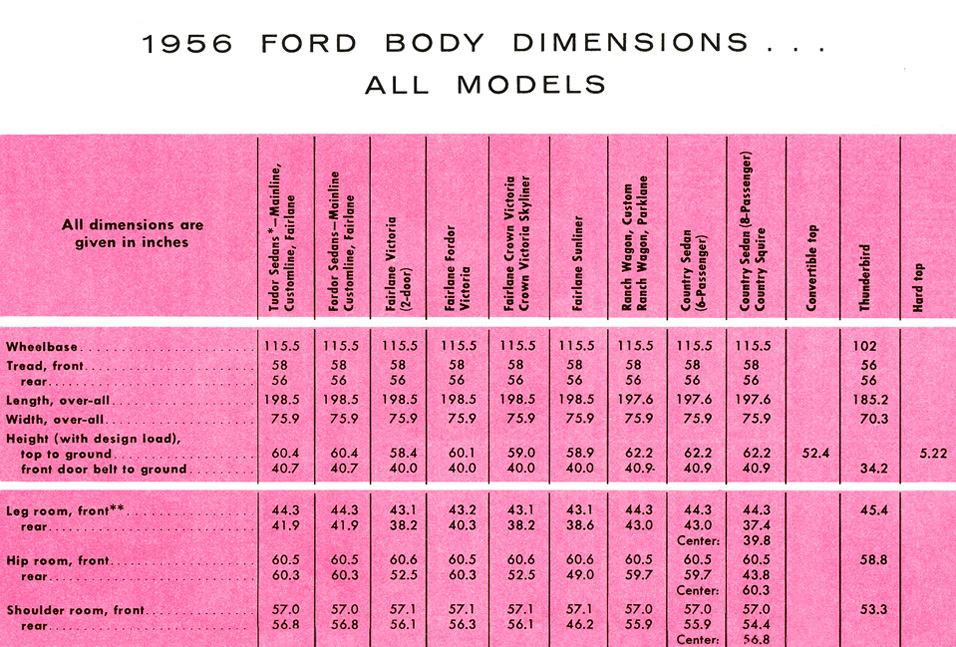

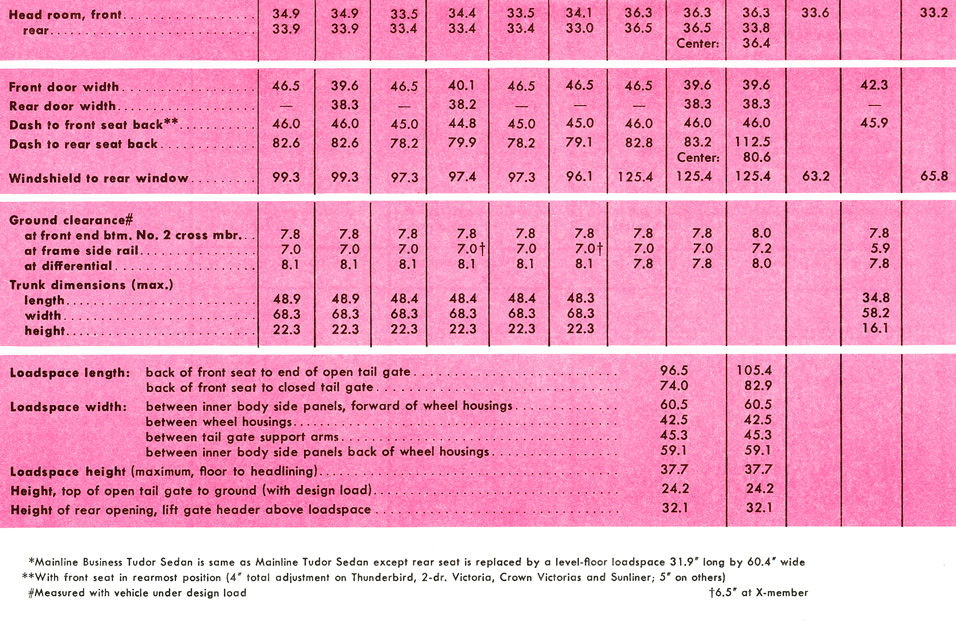

All The Facts Page 84   Body Dimensions All Models All The Facts Page 85   Body Dimensions All Models
Go to top ▲

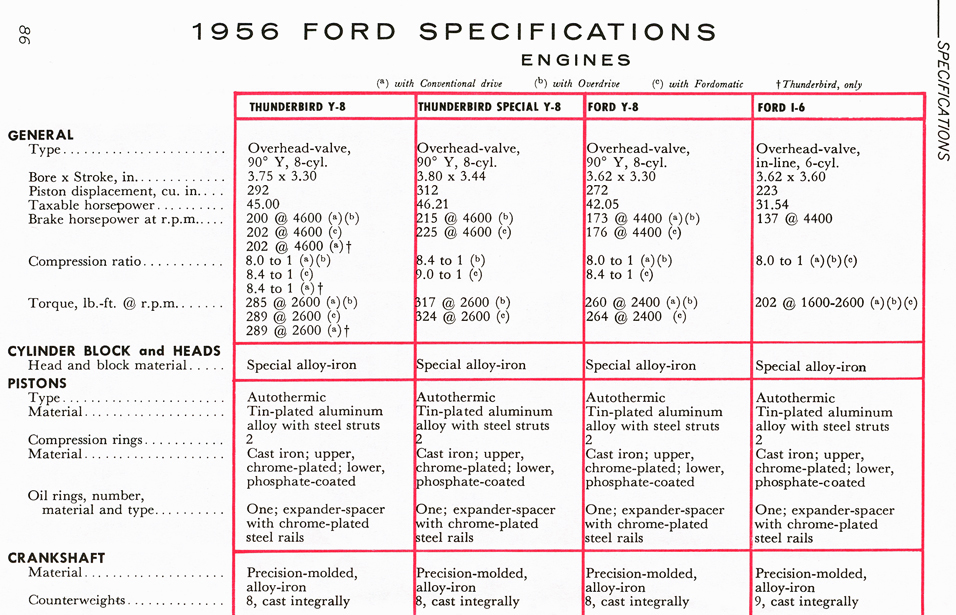

All The Facts Page 86   Engines   Cylinder Block and Heads   Pistons   Crankshaft   Connecting Rods   Camshaft  Valves   Lubrication System All The Facts Page 87   Engines   Cylinder Block and Heads   Pistons   Crankshaft   Connecting Rods   Camshaft   Valves   Lubrication System
Go to top ▲

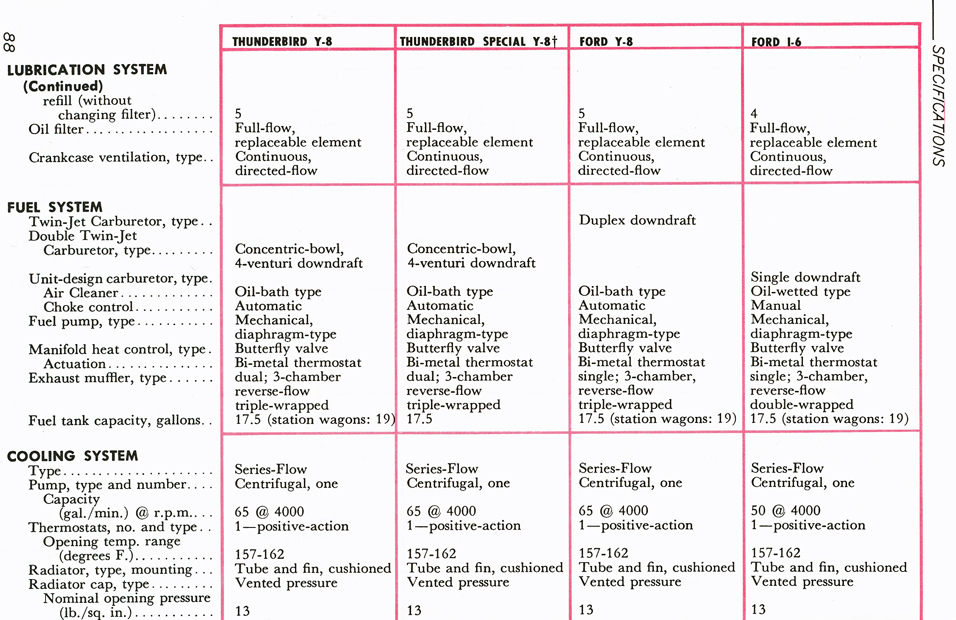

All The Facts Page 88   Lubrication System   Fuel System   Cooling System   Engine Electrical   Clutch   Transmissions   Conventional Drive   Transmissions-Overdrive All The Facts Page 89   Lubrication System   Fuel System   Cooling System   Engine Electrical   Clutch   Overdrive   Conventional Drive
Go to top ▲

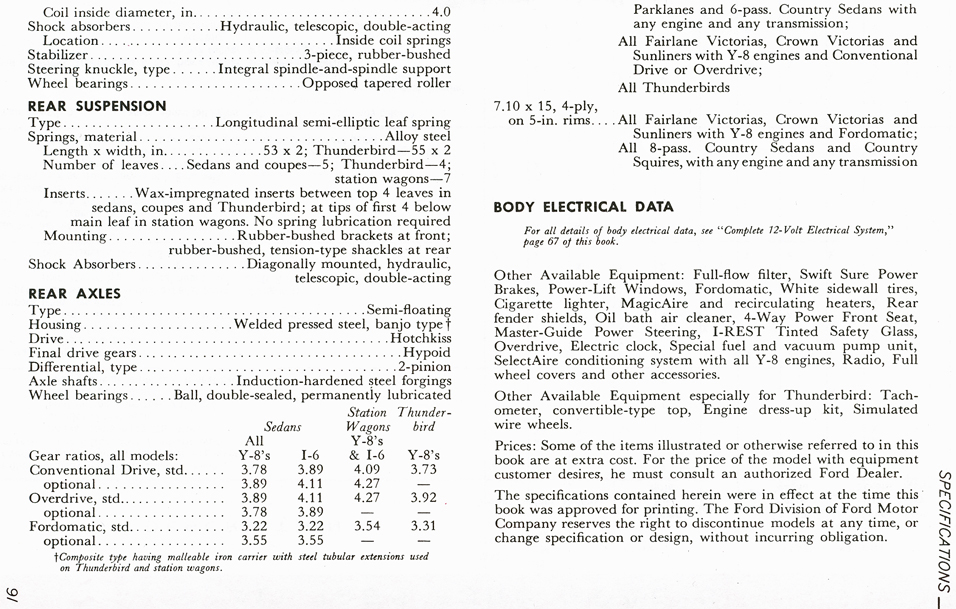

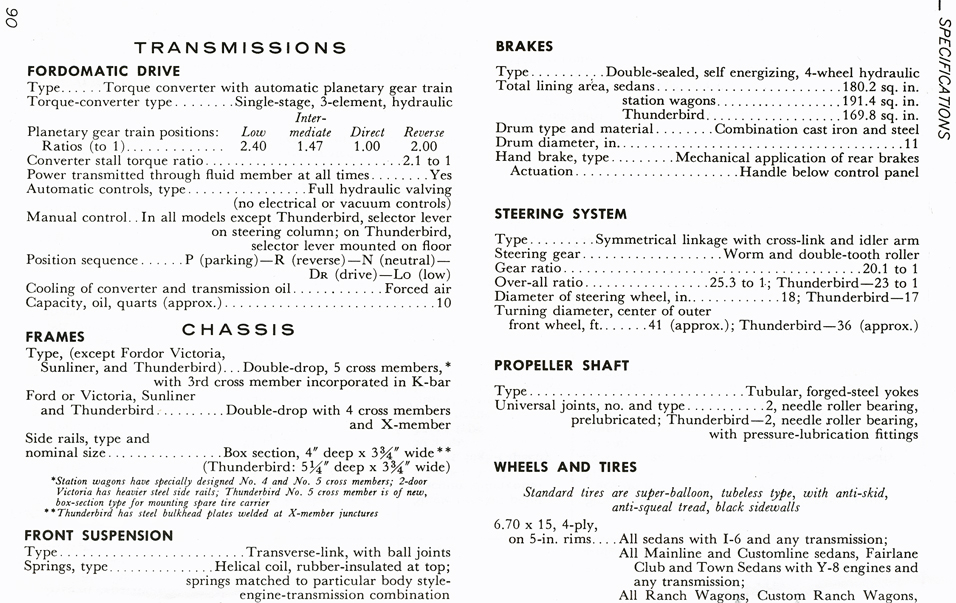

All The Facts Page 90   Fordomatic Drive   Chassis   Frames   Front Suspension   Rear Suspension   Rear Axles   Brakes   Steering System   Propeller Shaft   Wheels and Tires   Body Electrical Data All The Facts Page 91   Fordomatic Drive   Chassis   Frames   Front Suspension   Rear Suspension   Rear Axles   Brakes   Steering System   Propeller Shaft   Wheels and Tires   Body Electrical Data
Go to top ▲

< 1-13     < 14-23     < 24-35     < 36-45     < 46-61     < 62-67     < 68-79     Pages 80-91     > 92-99
